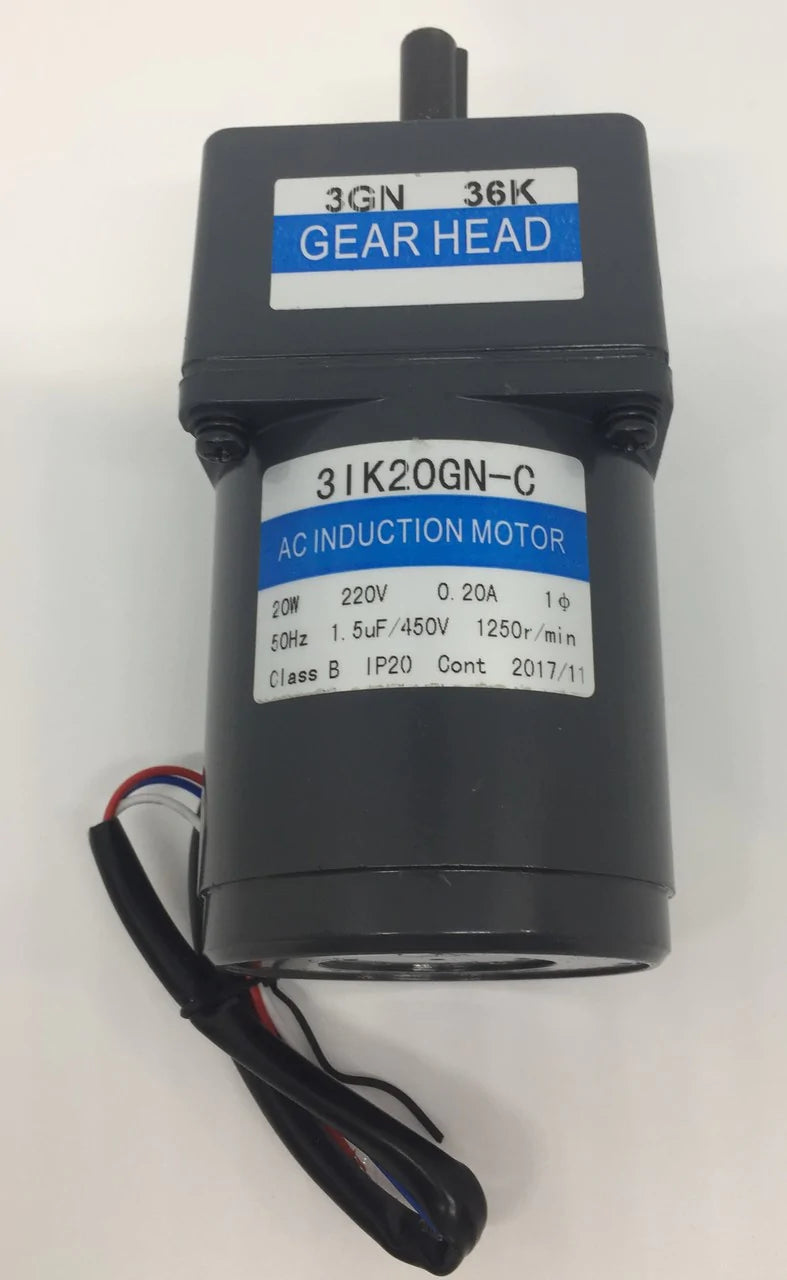

Magnetic Motor to suit CIHAN Slushie Machine
This gearbox/ beat motor also comes supplied with a capacitor.
The CIHAN Magnetic Gearbox is a specialized, magnetically-driven transmission component commonly used in Chinese manufactured slushie machines. Instead of relying on direct mechanical contact, it uses magnetic coupling to transfer rotational force from the motor to the auger (mixing blade) inside the bowl.
SKU: 9109100023
Length of Motor : 160mm
Specifications of gearbox/ beat motor: YN70/20
Power: 20W
Voltage: 220V 0.18A
Frequency: 50Hz
Capacitance: 1.8 uF
Speed: 1250 rpm
Specifications of capacitor: 450V AC, 50/60 Hz, 1.8uF
Other part numbers include; 70JB36G1032, BNP-45H018G0
